Amplifiers

Versatile amplification across multiple frequency ranges

ETL offers a comprehensive range of amplifiers designed to cover various frequency ranges, including IF, Broad, L, S, C, X, Ku, and wideband. Amplifier units can be supplied with a variety of connector types, including SMA, N-type, BNC or F-type, in 50 or 75 Ohm impedances. The range includes both the standard rectangular and a compact tubular design.

Not everything is listed on our website.

If you can’t find what you’re looking for or need a custom solution, contact our team.

Amplifier Product List

SKU	Buy	Freq. Low	Freq. High	Freq. Unit	Gain (dB)	Output P1dB Typ. (dBm)	OIP3 Typ. (dBm)	Noise Figure Typ. (dB)	DC Supply Voltage	Bias Type	hf:att:pa_freq-low	hf:att:pa_freq-high	hf:att:pa_freq-unit	hf:att:pa_insertion-nominal	hf:att:pa_output-p1db-typical	hf:att:pa_oip3-typical	hf:att:pa_noise-figure-typical	hf:att:pa_nominal-dc-supply-voltage	hf:att:pa_dc-powering-type
A-GABKX-338003-S5S5	A-GABKX-338003 quantity	1	20	GHz	25	+11.5	22	+4.5			1	20	ghz	25	11-5	22	4-5
A-GABL1-3110-F7F7	A-GABL1-3110 quantity	850	2150	MHz	20	15	25	8	+12V		850	2150	mhz	20	15	25	8	12v
A-GABL1-3110-S5S5	A-GABL1-3110 quantity	850	2150	MHz	20	15	25	8	+12V		850	2150	mhz	20	15	25	8	12v
A-GABL1-3110-B5B5	A-GABL1-3110 quantity	850	2150	MHz	20	15	25	8	+12V		850	2150	mhz	20	15	25	8	12v
A-GABL1-3110-N5N5	A-GABL1-3110 quantity	850	2150	MHz	20	15	25	8	+12V		850	2150	mhz	20	15	25	8	12v
A-GABL1-3110-B7B7	A-GABL1-3110 quantity	850	2150	MHz	20	15	25	8	+12V		850	2150	mhz	20	15	25	8	12v
A-GABL1-3111-F7F7	A-GABL1-3111 quantity	850	2150	MHz	10	12	22	10	+12V		850	2150	mhz	10	12	22	10	12v
A-GABL1-3111-B7B7	A-GABL1-3111 quantity	850	2150	MHz	10	12	22	10	+12V		850	2150	mhz	10	12	22	10	12v
A-GABL1-3111-S5S5	A-GABL1-3111 quantity	850	2150	MHz	10	12	22	10	+12V		850	2150	mhz	10	12	22	10	12v
A-GABL1-3111-B5B5	A-GABL1-3111 quantity	850	2150	MHz	10	12	22	10	+12V		850	2150	mhz	10	12	22	10	12v
A-GABL1-3111-N5N5	A-GABL1-3111 quantity	850	2150	MHz	10	12	22	10	+12V		850	2150	mhz	10	12	22	10	12v
A-GABL1-3112-B5B5	A-GABL1-3112 quantity	850	2150	MHz	15	13	22	9	+12V		850	2150	mhz	15	13	22	9	12v
A-GABL1-3112-S5S5/1	A-GABL1-3112 quantity	850	2150	MHz	15	13	22	9	+12V		850	2150	mhz	15	13	22	9	12v
A-GABL1-3112-N5N5	A-GABL1-3112 quantity	850	2150	MHz	15	13	22	9	+12V		850	2150	mhz	15	13	22	9	12v
A-GABL1-3112-F7F7	A-GABL1-3112 quantity	850	2150	MHz	15	13	22	9	+12V		850	2150	mhz	15	13	22	9	12v
A-GABL1-3112-B7B7	A-GABL1-3112 quantity	850	2150	MHz	15	13	22	9	+12V		850	2150	mhz	15	13	22	9	12v
A-GABL1-3112-N5N5/1	A-GABL1-3112 quantity	850	2150	MHz	15	13	22	9	+12V		850	2150	mhz	15	13	22	9	12v
A-GABL1-3112-S5S5	A-GABL1-3112 quantity	850	2150	MHz	15	13	22	9	+12V		850	2150	mhz	15	13	22	9	12v
A-GABL1-3113-B5B5	A-GABL1-3113 quantity	850	2150	MHz	25	11	18	8	+12V	Ext. solder feed thru	850	2150	mhz	25	11	18	8	12v	ext-solder-feed-thru
A-GABL1-3113-S5S5	A-GABL1-3113 quantity	850	2150	MHz	25	11	18	8	+12V	Ext. solder feed thru	850	2150	mhz	25	11	18	8	12v	ext-solder-feed-thru
A-GABL1-3113-S5S5/1	A-GABL1-3113 quantity	850	2150	MHz	25	11	18	8	+12V	Ext. solder feed thru	850	2150	mhz	25	11	18	8	12v	ext-solder-feed-thru
A-GABL1-3113-F7F7	A-GABL1-3113 quantity	850	2150	MHz	25	11	18	8	+12V	Ext. solder feed thru	850	2150	mhz	25	11	18	8	12v	ext-solder-feed-thru
A-GABL1-3113-B7B7	A-GABL1-3113 quantity	850	2150	MHz	25	11	18	8	+12V	Ext. solder feed thru	850	2150	mhz	25	11	18	8	12v	ext-solder-feed-thru
A-GABL1-3113-F7F7/1	A-GABL1-3113 quantity	850	2150	MHz	25	11	18	8	+12V	Ext. solder feed thru	850	2150	mhz	25	11	18	8	12v	ext-solder-feed-thru
A-GABL1-3113-N5N5	A-GABL1-3113 quantity	850	2150	MHz	25	11	18	8	+12V	Ext. solder feed thru	850	2150	mhz	25	11	18	8	12v	ext-solder-feed-thru
A-GABL1-3114-F7F7	A-GABL1-3114 quantity	850	2150	MHz	30	15	25	8	+12V		850	2150	mhz	30	15	25	8	12v
A-GABL1-3114-S5S5	A-GABL1-3114 quantity	850	2150	MHz	30	15	25	8	+12V		850	2150	mhz	30	15	25	8	12v
A-GABL1-3114-B5B5	A-GABL1-3114 quantity	850	2150	MHz	30	15	25	8	+12V		850	2150	mhz	30	15	25	8	12v
A-GABL1-3114-B7B7	A-GABL1-3114 quantity	850	2150	MHz	30	15	25	8	+12V		850	2150	mhz	30	15	25	8	12v
A-GABL1-3114-N5N5	A-GABL1-3114 quantity	850	2150	MHz	30	15	25	8	+12V		850	2150	mhz	30	15	25	8	12v
A-GABL1-3131-B5B5	A-GABL1-3131 quantity	850	2150	MHz	10	15	22	10	+12V		850	2150	mhz	10	15	22	10	12v
A-GABL1-3131-N5N5	A-GABL1-3131 quantity	850	2150	MHz	10	15	22	10	+12V		850	2150	mhz	10	15	22	10	12v
A-GABL1-3131-S5S5	A-GABL1-3131 quantity	850	2150	MHz	10	15	22	10	+12V		850	2150	mhz	10	15	22	10	12v
A-GABL1-3131-B7B7	A-GABL1-3131 quantity	850	2150	MHz	10	15	22	10	+12V		850	2150	mhz	10	15	22	10	12v
A-GABL1-3131-F7F7	A-GABL1-3131 quantity	850	2150	MHz	10	15	22	10	+12V		850	2150	mhz	10	15	22	10	12v
A-GABL1-3132-F7F7	A-GABL1-3132 quantity	850	2150	MHz	15	15	25	10	+12V		850	2150	mhz	15	15	25	10	12v
A-GABL1-3132-B5B5	A-GABL1-3132 quantity	850	2150	MHz	15	15	25	10	+12V		850	2150	mhz	15	15	25	10	12v
A-GABL1-3132-B7B7	A-GABL1-3132 quantity	850	2150	MHz	15	15	25	10	+12V		850	2150	mhz	15	15	25	10	12v
A-GABL1-3132-N5N5	A-GABL1-3132 quantity	850	2150	MHz	15	15	25	10	+12V		850	2150	mhz	15	15	25	10	12v
A-GABL1-3132-S5S5	A-GABL1-3132 quantity	850	2150	MHz	15	15	25	10	+12V		850	2150	mhz	15	15	25	10	12v
A-GABL1-3133-B7B7	A-GABL1-3133 quantity	850	2150	MHz	25	15	25	8	+12V		850	2150	mhz	25	15	25	8	12v
A-GABL1-3133-N5N5	A-GABL1-3133 quantity	850	2150	MHz	25	15	25	8	+12V		850	2150	mhz	25	15	25	8	12v
A-GABL1-3133-S5S5	A-GABL1-3133 quantity	850	2150	MHz	25	15	25	8	+12V		850	2150	mhz	25	15	25	8	12v
A-GABL1-3133-B5B5	A-GABL1-3133 quantity	850	2150	MHz	25	15	25	8	+12V		850	2150	mhz	25	15	25	8	12v
A-GABL1-3133-F7F7	A-GABL1-3133 quantity	850	2150	MHz	25	15	25	8	+12V		850	2150	mhz	25	15	25	8	12v
A-GABL1-3134-B5B5	A-GABL1-3134 quantity	850	2150	MHz	30	15	25	8	+12V		850	2150	mhz	30	15	25	8	12v
A-GABL1-3134-N5N5	A-GABL1-3134 quantity	850	2150	MHz	30	15	25	8	+12V		850	2150	mhz	30	15	25	8	12v
A-GABL1-3134-F7F7	A-GABL1-3134 quantity	850	2150	MHz	30	15	25	8	+12V		850	2150	mhz	30	15	25	8	12v
A-GABL1-3134-B7B7	A-GABL1-3134 quantity	850	2150	MHz	30	15	25	8	+12V		850	2150	mhz	30	15	25	8	12v
A-GABL1-3134-S5S5	A-GABL1-3134 quantity	850	2150	MHz	30	15	25	8	+12V		850	2150	mhz	30	15	25	8	12v
A-GABL1-3135-F7F7	A-GABL1-3135 quantity	850	2150	MHz	25	16	25	7	+12V		850	2150	mhz	25	16-6	25	7	12v
A-GABL1-3135-S5S5	A-GABL1-3135 quantity	850	2150	MHz	25	16	25	7	+12V		850	2150	mhz	25	16-6	25	7	12v
A-GABL1-3135-B7B7	A-GABL1-3135 quantity	850	2150	MHz	25	16	25	7	+12V		850	2150	mhz	25	16-6	25	7	12v
A-GABL1-3135-N5N5	A-GABL1-3135 quantity	850	2150	MHz	25	16	25	7	+12V		850	2150	mhz	25	16-6	25	7	12v
A-GABL1-3135-B5B5	A-GABL1-3135 quantity	850	2150	MHz	25	16	25	7	+12V		850	2150	mhz	25	16-6	25	7	12v
A-GABL1-3139-B5B5	A-GABL1-3139 quantity	850	2150	MHz	10	15	25	7	+12V	Inline RF cable	850	2150	mhz	10	15	25	7	12v	inline-rf-cable
A-GABL1-3139-N5N5	A-GABL1-3139 quantity	850	2150	MHz	10	15	25	7	+12V	Inline RF cable	850	2150	mhz	10	15	25	7	12v	inline-rf-cable
A-GABL1-3139-S5S5	A-GABL1-3139 quantity	850	2150	MHz	10	15	25	7	+12V	Inline RF cable	850	2150	mhz	10	15	25	7	12v	inline-rf-cable
A-GABL1-3139-B7B7	A-GABL1-3139 quantity	850	2150	MHz	10	15	25	7	+12V	Inline RF cable	850	2150	mhz	10	15	25	7	12v	inline-rf-cable
A-GABL1-3139-F7F7	A-GABL1-3139 quantity	850	2150	MHz	10	15	25	7	+12V	Inline RF cable	850	2150	mhz	10	15	25	7	12v	inline-rf-cable
A-GABL1-3140-F7F7	A-GABL1-3140 quantity	850	2150	MHz	20	15	25	8	+12V		850	2150	mhz	20	15	25	8	12v
A-GABL1-3140-B7B7	A-GABL1-3140 quantity	850	2150	MHz	20	15	25	8	+12V		850	2150	mhz	20	15	25	8	12v
A-GABL1-3140-B5B5	A-GABL1-3140 quantity	850	2150	MHz	20	15	25	8	+12V		850	2150	mhz	20	15	25	8	12v
A-GABL1-3140-N5N5	A-GABL1-3140 quantity	850	2150	MHz	20	15	25	8	+12V		850	2150	mhz	20	15	25	8	12v
A-GABL1-3140-S5S5	A-GABL1-3140 quantity	850	2150	MHz	20	15	25	8	+12V		850	2150	mhz	20	15	25	8	12v
A-GABL1-3141-B7B7	A-GABL1-3141 quantity	850	2150	MHz	10	15	27	12	+12V		850	2150	mhz	10	15	27-3	12-9	12v
A-GABL1-3141-B5B5	A-GABL1-3141 quantity	850	2150	MHz	10	15	27	12	+12V		850	2150	mhz	10	15	27-3	12-9	12v
A-GABL1-3141-F7F7	A-GABL1-3141 quantity	850	2150	MHz	10	15	27	12	+12V		850	2150	mhz	10	15	27-3	12-9	12v
A-GABL1-3141-N5N5	A-GABL1-3141 quantity	850	2150	MHz	10	15	27	12	+12V		850	2150	mhz	10	15	27-3	12-9	12v
A-GABL1-3141-S5S5	A-GABL1-3141 quantity	850	2150	MHz	10	15	27	12	+12V		850	2150	mhz	10	15	27-3	12-9	12v
A-GABL1-3143-B7B7	A-GABL1-3143 quantity	850	2150	MHz	25	12	23	8	+12V		850	2150	mhz	25	12	23-3	8	12v
A-GABL1-3143-N5N5	A-GABL1-3143 quantity	850	2150	MHz	25	12	23	8	+12V		850	2150	mhz	25	12	23-3	8	12v
A-GABL1-3143-S5S5	A-GABL1-3143 quantity	850	2150	MHz	25	12	23	8	+12V		850	2150	mhz	25	12	23-3	8	12v
A-GABL1-3143-B5B5	A-GABL1-3143 quantity	850	2150	MHz	25	12	23	8	+12V		850	2150	mhz	25	12	23-3	8	12v
A-GABL1-3143-F7F7	A-GABL1-3143 quantity	850	2150	MHz	25	12	23	8	+12V		850	2150	mhz	25	12	23-3	8	12v
A-GABL1-3207-F7F7	A-GABL1-3207 quantity	850	2150	MHz	15	15	25	7	+12V		850	2150	mhz	15	15	25	7	12v
A-GABL1-3207-B5B5	A-GABL1-3207 quantity	850	2150	MHz	15	15	25	7	+12V		850	2150	mhz	15	15	25	7	12v
A-GABL1-3207-B7B7	A-GABL1-3207 quantity	850	2150	MHz	15	15	25	7	+12V		850	2150	mhz	15	15	25	7	12v
A-GABL1-3207-N5N5	A-GABL1-3207 quantity	850	2150	MHz	15	15	25	7	+12V		850	2150	mhz	15	15	25	7	12v
A-GABL1-3207-S5S5	A-GABL1-3207 quantity	850	2150	MHz	15	15	25	7	+12V		850	2150	mhz	15	15	25	7	12v
A-GABL1-3208-B7B7	A-GABL1-3208 quantity	850	2150	MHz	20	12	23	8	+12V		850	2150	mhz	20	12	23-3	8	12v
A-GABL1-3208-F7F7	A-GABL1-3208 quantity	850	2150	MHz	20	12	23	8	+12V		850	2150	mhz	20	12	23-3	8	12v
A-GABL1-3208-B5B5	A-GABL1-3208 quantity	850	2150	MHz	20	12	23	8	+12V		850	2150	mhz	20	12	23-3	8	12v
A-GABL1-3208-S5S5	A-GABL1-3208 quantity	850	2150	MHz	20	12	23	8	+12V		850	2150	mhz	20	12	23-3	8	12v
A-GABL1-3208-N5N5	A-GABL1-3208 quantity	850	2150	MHz	20	12	23	8	+12V		850	2150	mhz	20	12	23-3	8	12v
A-GABL1-3210-B5B5	A-GABL1-3210 quantity	850	2150	MHz	30	17	23	7	+12V		850	2150	mhz	30	17-4	23-3	7	12v
A-GABL1-3210-N5N5	A-GABL1-3210 quantity	850	2150	MHz	30	17	23	7	+12V		850	2150	mhz	30	17-4	23-3	7	12v
A-GABL1-3210-S5S5	A-GABL1-3210 quantity	850	2150	MHz	30	17	23	7	+12V		850	2150	mhz	30	17-4	23-3	7	12v
A-GABL1-3210-B7B7	A-GABL1-3210 quantity	850	2150	MHz	30	17	23	7	+12V		850	2150	mhz	30	17-4	23-3	7	12v
A-GABL1-3210-F7F7	A-GABL1-3210 quantity	850	2150	MHz	30	17	23	7	+12V		850	2150	mhz	30	17-4	23-3	7	12v
A-GABL1-3213-F7F7	A-GABL1-3213 quantity	850	2150	MHz	10	18	28	13	+12V		850	2150	mhz	10	18-9	28-3	13-6	12v
A-GABL1-3213-B5B5	A-GABL1-3213 quantity	850	2150	MHz	10	18	28	13	+12V		850	2150	mhz	10	18-9	28-3	13-6	12v
A-GABL1-3213-B7B7	A-GABL1-3213 quantity	850	2150	MHz	10	18	28	13	+12V		850	2150	mhz	10	18-9	28-3	13-6	12v
A-GABL1-3213-N5N5	A-GABL1-3213 quantity	850	2150	MHz	10	18	28	13	+12V		850	2150	mhz	10	18-9	28-3	13-6	12v
A-GABL1-3213-S5S5	A-GABL1-3213 quantity	850	2150	MHz	10	18	28	13	+12V		850	2150	mhz	10	18-9	28-3	13-6	12v
A-GABL1-3214-B5B5	A-GABL1-3214 quantity	850	2150	MHz	20	18	28	10	+12V		850	2150	mhz	20	18-9	28-3	10	12v
A-GABL1-3214-B7B7	A-GABL1-3214 quantity	850	2150	MHz	20	18	28	10	+12V		850	2150	mhz	20	18-9	28-3	10	12v
A-GABL1-3214-N5N5	A-GABL1-3214 quantity	850	2150	MHz	20	18	28	10	+12V		850	2150	mhz	20	18-9	28-3	10	12v
A-GABL1-3214-S5S5	A-GABL1-3214 quantity	850	2150	MHz	20	18	28	10	+12V		850	2150	mhz	20	18-9	28-3	10	12v
A-GABL1-3214-F7F7	A-GABL1-3214 quantity	850	2150	MHz	20	18	28	10	+12V		850	2150	mhz	20	18-9	28-3	10	12v
A-GABL1-3217-B5B5	A-GABL1-3217 quantity	850	2150	MHz	20	15	23	9	+12V		850	2150	mhz	20	15	23-3	9	12v
A-GABL1-3217-N5N5	A-GABL1-3217 quantity	850	2150	MHz	20	15	23	9	+12V		850	2150	mhz	20	15	23-3	9	12v
A-GABL1-3217-F7F7	A-GABL1-3217 quantity	850	2150	MHz	20	15	23	9	+12V		850	2150	mhz	20	15	23-3	9	12v
A-GABL1-3217-B7B7	A-GABL1-3217 quantity	850	2150	MHz	20	15	23	9	+12V		850	2150	mhz	20	15	23-3	9	12v
A-GABL1-3217-S5S5	A-GABL1-3217 quantity	850	2150	MHz	20	15	23	9	+12V		850	2150	mhz	20	15	23-3	9	12v
A-GABL1-3218-B7B7	A-GABL1-3218 quantity	850	2150	MHz	20	16	23	8	+12V		850	2150	mhz	20	16-6	23-3	8	12v
A-GABL1-3218-S5S5	A-GABL1-3218 quantity	850	2150	MHz	20	16	23	8	+12V		850	2150	mhz	20	16-6	23-3	8	12v
A-GABL1-3218-B5B5	A-GABL1-3218 quantity	850	2150	MHz	20	16	23	8	+12V		850	2150	mhz	20	16-6	23-3	8	12v
A-GABL1-3218-N5N5	A-GABL1-3218 quantity	850	2150	MHz	20	16	23	8	+12V		850	2150	mhz	20	16-6	23-3	8	12v
A-GABL1-3218-F7F7	A-GABL1-3218 quantity	850	2150	MHz	20	16	23	8	+12V		850	2150	mhz	20	16-6	23-3	8	12v
A-GABL1-3219-B7B7	A-GABL1-3219 quantity	850	2150	MHz	10	12	20	13	+12V		850	2150	mhz	10	12	20-8	13-6	12v
A-GABL1-3219-B5B5	A-GABL1-3219 quantity	850	2150	MHz	10	12	20	13	+12V		850	2150	mhz	10	12	20-8	13-6	12v
A-GABL1-3219-F7F7	A-GABL1-3219 quantity	850	2150	MHz	10	12	20	13	+12V		850	2150	mhz	10	12	20-8	13-6	12v
A-GABL1-3219-N5N5	A-GABL1-3219 quantity	850	2150	MHz	10	12	20	13	+12V		850	2150	mhz	10	12	20-8	13-6	12v
A-GABL1-3219-S5S5	A-GABL1-3219 quantity	850	2150	MHz	10	12	20	13	+12V		850	2150	mhz	10	12	20-8	13-6	12v
A-GABL1-3220-B5B5	A-GABL1-3220 quantity	850	2150	MHz	15	16	22	10	+12V		850	2150	mhz	15	16-6	22	10	12v
A-GABL1-3220-S5S5	A-GABL1-3220 quantity	850	2150	MHz	15	16	22	10	+12V		850	2150	mhz	15	16-6	22	10	12v
A-GABL1-3220-N5N5	A-GABL1-3220 quantity	850	2150	MHz	15	16	22	10	+12V		850	2150	mhz	15	16-6	22	10	12v
A-GABL1-3220-F7F7	A-GABL1-3220 quantity	850	2150	MHz	15	16	22	10	+12V		850	2150	mhz	15	16-6	22	10	12v
A-GABL1-3220-B7B7	A-GABL1-3220 quantity	850	2150	MHz	15	16	22	10	+12V		850	2150	mhz	15	16-6	22	10	12v
A-GABL1-3222-F7F7	A-GABL1-3222 quantity	850	2150	MHz	30	18	28	10	+12V		850	2150	mhz	30	18-9	28-3	10	12v
A-GABL1-3222-B7B7	A-GABL1-3222 quantity	850	2150	MHz	30	18	28	10	+12V		850	2150	mhz	30	18-9	28-3	10	12v
A-GABL1-3222-S5S5	A-GABL1-3222 quantity	850	2150	MHz	30	18	28	10	+12V		850	2150	mhz	30	18-9	28-3	10	12v
A-GABL1-3222-B5B5	A-GABL1-3222 quantity	850	2150	MHz	30	18	28	10	+12V		850	2150	mhz	30	18-9	28-3	10	12v
A-GABL1-3222-N5N5	A-GABL1-3222 quantity	850	2150	MHz	30	18	28	10	+12V		850	2150	mhz	30	18-9	28-3	10	12v
A-LNACX-363002-S5S5	A-LNACX-363002 quantity	1	20	GHz	27	14	26	3.5			1	20	ghz	27-4	14-10	26-3	3-5-2
A-LNAKX-363003-S5S5	A-LNAKX-363003 quantity	1	20	GHz	27	13	25	3.5			1	20	ghz	27-4	13	25	3-5-2
A-LNAKX-363005-S5S5	A-LNAKX-363005 quantity	1	20	GHz	25	11	22	5.5			1	20	ghz	25	11	22	5-5-2
A-LNAKX-363010-K5K5	A-LNAKX-363010 quantity	27	31	GHz	20	16	26	2	+24V		27	31	ghz	20	16-6	26-3	2	24v
A-LNAKX-363012-S5S5	A-LNAKX-363012 quantity	2	18	GHz	24	23					2	18	ghz	24-3	23-4
A-VGAL1-3011-B5B5	A-VGAL1-3011 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3011-N5N5	A-VGAL1-3011 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3011-B7B7	A-VGAL1-3011 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3011-S5S5	A-VGAL1-3011 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3011-F7F7	A-VGAL1-3011 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3013-F7F7	A-VGAL1-3013 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3013-B5B5	A-VGAL1-3013 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3013-B7B7	A-VGAL1-3013 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3013-N5N5	A-VGAL1-3013 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3013-S5S5	A-VGAL1-3013 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3014-B7B7	A-VGAL1-3014 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3014-F7F7	A-VGAL1-3014 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3014-B5B5	A-VGAL1-3014 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3014-S5S5	A-VGAL1-3014 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3014-N5N5	A-VGAL1-3014 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3016-S5S5	A-VGAL1-3016 quantity	850	2150	MHz		15	30	8	+12V		850	2150	mhz		15	30-4	8	12v
A-VGAL1-3016-B5B5	A-VGAL1-3016 quantity	850	2150	MHz		15	30	8	+12V		850	2150	mhz		15	30-4	8	12v
A-VGAL1-3016-B7B7	A-VGAL1-3016 quantity	850	2150	MHz		15	30	8	+12V		850	2150	mhz		15	30-4	8	12v
A-VGAL1-3016-F7F7/1	A-VGAL1-3016 quantity	850	2150	MHz		15	30	8	+12V		850	2150	mhz		15	30-4	8	12v
A-VGAL1-3016-F7F7	A-VGAL1-3016 quantity	850	2150	MHz		15	30	8	+12V		850	2150	mhz		15	30-4	8	12v
A-VGAL1-3016-N5N5	A-VGAL1-3016 quantity	850	2150	MHz		15	30	8	+12V		850	2150	mhz		15	30-4	8	12v
A-VGAL1-3016-N5N5/1	A-VGAL1-3016 quantity	850	2150	MHz		15	30	8	+12V		850	2150	mhz		15	30-4	8	12v
A-VGAL1-3018-F7F7	A-VGAL1-3018 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3018-S5S5	A-VGAL1-3018 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3018-N5N5/1	A-VGAL1-3018 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3018-S5S5/1	A-VGAL1-3018 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3018-B5B5	A-VGAL1-3018 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3018-B7B7	A-VGAL1-3018 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3018-N5N5	A-VGAL1-3018 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3019-B5B5	A-VGAL1-3019 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3019-S5S5	A-VGAL1-3019 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3019-F7F7	A-VGAL1-3019 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3019-S5S5/M	A-VGAL1-3019 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3019-F7F7/1	A-VGAL1-3019 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3019-B7B7	A-VGAL1-3019 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3019-N5N5	A-VGAL1-3019 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3020-B7B7	A-VGAL1-3020 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3020-F7F7	A-VGAL1-3020 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3020-B5B5	A-VGAL1-3020 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3020-N5N5	A-VGAL1-3020 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3020-S5S5	A-VGAL1-3020 quantity	850	2150	MHz		15	30	8	+24V		850	2150	mhz		15	30-4	8	24v
A-VGAL1-3025-F7F7	A-VGAL1-3025 quantity	850	2150	MHz		15	27	12	+12V		850	2150	mhz		15	27-3	12-9	12v
A-VGAL1-3025-N5N5/1	A-VGAL1-3025 quantity	850	2150	MHz		15	27	12	+12V		850	2150	mhz		15	27-3	12-9	12v
A-VGAL1-3025-B5B5	A-VGAL1-3025 quantity	850	2150	MHz		15	27	12	+12V		850	2150	mhz		15	27-3	12-9	12v
A-VGAL1-3025-S5S5	A-VGAL1-3025 quantity	850	2150	MHz		15	27	12	+12V		850	2150	mhz		15	27-3	12-9	12v
A-VGAL1-3025-N4N4	A-VGAL1-3025 quantity	850	2150	MHz		15	27	12	+12V		850	2150	mhz		15	27-3	12-9	12v
A-VGAL1-3025-N5N5	A-VGAL1-3025 quantity	850	2150	MHz		15	27	12	+12V		850	2150	mhz		15	27-3	12-9	12v
A-VGAL1-3025-B7B7	A-VGAL1-3025 quantity	850	2150	MHz		15	27	12	+12V		850	2150	mhz		15	27-3	12-9	12v
A-VGAL1-3026-B5B5	A-VGAL1-3026 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3026-N5N5	A-VGAL1-3026 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3026-S5S5	A-VGAL1-3026 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3026-F7F7	A-VGAL1-3026 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3026-B7B7	A-VGAL1-3026 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3027-N5N5/1	A-VGAL1-3027 quantity	850	2150	MHz		18	27	+	+12V		850	2150	mhz		18-9	27-3	580	12v
A-VGAL1-3027-B5B5	A-VGAL1-3027 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3027-B7B7	A-VGAL1-3027 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3027-N5N5	A-VGAL1-3027 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3027-F7F7	A-VGAL1-3027 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3027-S5S5	A-VGAL1-3027 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3028-B7B7	A-VGAL1-3028 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3028-N5N5	A-VGAL1-3028 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3028-S5S5	A-VGAL1-3028 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3028-B5B5	A-VGAL1-3028 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3028-F7F7	A-VGAL1-3028 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3029-B7B7	A-VGAL1-3029 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3029-N5N5	A-VGAL1-3029 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3029-S5S5	A-VGAL1-3029 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3029-B5B5	A-VGAL1-3029 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3029-F7F7	A-VGAL1-3029 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3030-B5B5	A-VGAL1-3030 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3030-F7F7	A-VGAL1-3030 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3030-B7B7	A-VGAL1-3030 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3030-N5N5	A-VGAL1-3030 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3030-S5S5	A-VGAL1-3030 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3049-B7B7	A-VGAL1-3049 quantity	850	2150	MHz		15	25	9	+12V		850	2150	mhz		15	25	9	12v
A-VGAL1-3049-F7F7	A-VGAL1-3049 quantity	850	2150	MHz		15	25	9	+12V		850	2150	mhz		15	25	9	12v
A-VGAL1-3049-B5B5	A-VGAL1-3049 quantity	850	2150	MHz		15	25	9	+12V		850	2150	mhz		15	25	9	12v
A-VGAL1-3049-N5N5	A-VGAL1-3049 quantity	850	2150	MHz		15	25	9	+12V		850	2150	mhz		15	25	9	12v
A-VGAL1-3049-S5S5	A-VGAL1-3049 quantity	850	2150	MHz		15	25	9	+12V		850	2150	mhz		15	25	9	12v
A-VGAL1-3050-N5N5	A-VGAL1-3050 quantity	850	2150	MHz		15	30	8	+12V		850	2150	mhz		15	30-4	8	12v
A-VGAL1-3053-F7F7	A-VGAL1-3053 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3053-B7B7	A-VGAL1-3053 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3053-S5S5	A-VGAL1-3053 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3053-B5B5	A-VGAL1-3053 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-3053-N5N5	A-VGAL1-3053 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
A-VGAL1-310002-B5B5	A-VGAL1-310002 quantity	850	2150	MHz		15	25	9	+28V		850	2150	mhz		15	25	9	28v
A-VGAL1-310002-N5N5	A-VGAL1-310002 quantity	850	2150	MHz		15	25	9	+28V		850	2150	mhz		15	25	9	28v
A-VGAL1-310002-S5S5	A-VGAL1-310002 quantity	850	2150	MHz		15	25	9	+28V		850	2150	mhz		15	25	9	28v
A-VGAL1-310002-B7B7	A-VGAL1-310002 quantity	850	2150	MHz		15	25	9	+28V		850	2150	mhz		15	25	9	28v
A-VGAL1-310002-F7F7	A-VGAL1-310002 quantity	850	2150	MHz		15	25	9	+28V		850	2150	mhz		15	25	9	28v
ODU-3011-B5B5	ODU-3011 quantity	850	2150	MHz		15	30	9	+12V	Inline RF cable	850	2150	mhz		15	30-4	9	12v	inline-rf-cable
ODU-3011-F7F7	ODU-3011 quantity	850	2150	MHz		15	30	9	+12V	Inline RF cable	850	2150	mhz		15	30-4	9	12v	inline-rf-cable
ODU-3011-N5N5	ODU-3011 quantity	850	2150	MHz		15	30	9	+12V	Inline RF cable	850	2150	mhz		15	30-4	9	12v	inline-rf-cable
ODU-3011-S5S5	ODU-3011 quantity	850	2150	MHz		15	30	9	+12V	Inline RF cable	850	2150	mhz		15	30-4	9	12v	inline-rf-cable
ODU-3013-F7F7	ODU-3013 quantity	850	2150	MHz		15	30	9	+24V		850	2150	mhz		15	30-4	9	24v
ODU-3013-N5N5	ODU-3013 quantity	850	2150	MHz		15	30	9	+24V		850	2150	mhz		15	30-4	9	24v
ODU-3013-S5S5	ODU-3013 quantity	850	2150	MHz		15	30	9	+24V		850	2150	mhz		15	30-4	9	24v
ODU-3014-F7F7	ODU-3014 quantity	850	2450	MHz		15	30	9	+24V		850	2450	mhz		15	30-4	9	24v
ODU-3014-N5N5	ODU-3014 quantity	850	2450	MHz		15	30	9	+24V		850	2450	mhz		15	30-4	9	24v
ODU-3014-S5S5	ODU-3014 quantity	850	2450	MHz		15	30	9	+24V		850	2450	mhz		15	30-4	9	24v
ODU-3053-N5N5	ODU-3053 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
ODU-3053-F7F7	ODU-3053 quantity	850	2150	MHz		18	27	12	+12V		850	2150	mhz		18-9	27-3	12-9	12v
ODU-3333-N5N5	ODU-3333 quantity	850	2150	MHz	9	3	13	15	+12V	Inline RF cable	850	2150	mhz	9-5	3-3	13-7	15-11	12v	inline-rf-cable
ODU-3333-S5S5	ODU-3333 quantity	850	2150	MHz	9	3	13	15	+12V	Inline RF cable	850	2150	mhz	9-5	3-3	13-7	15-11	12v	inline-rf-cable

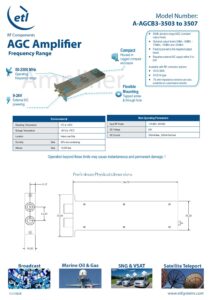

Automatic Gain Control (AGC) Amplifier Product List

SKU	Buy	Freq. Low	Freq. High	Freq. Unit	Output Level (dBm)	Input Power Minimum (dBm)	Input Power Maximum (dBm)	Typical Input return loss (dB)	Min. Input return loss (dB)	Typical Output return loss (dB)	Min. Output return loss (dB)	hf:att:pa_freq-low	hf:att:pa_freq-high	hf:att:pa_freq-unit	hf:att:pa_nom-agc-output-power-level	hf:att:pa_minimum-input-power-level	hf:att:pa_maximum-input-power-level	hf:att:pa_input-return-loss-typical	hf:att:pa_input-return-loss-minimum	hf:att:pa_output-return-loss-typical	hf:att:pa_output-return-loss-minimum
A-AGCB3-3503-F7F7	A-AGCB3-3503 quantity	50	2500	MHz	0	-50	5	-14	-8	-14	-8	50	2500	mhz	0	50	5	14-7	8-7	14-8	8-6
A-AGCB3-3503-N5N5	A-AGCB3-3503 quantity	50	2500	MHz	0	-50	5	-18	-14	-18	-12	50	2500	mhz	0	50	5	18-6	14-6	18-8	12-3
A-AGCB3-3503-S5S5	A-AGCB3-3503 quantity	50	2500	MHz	0	-50	5	-20	-15	-20	-12	50	2500	mhz	0	50	5	20-7	15-8	20-6	12-3
A-AGCB3-3504-N5N5	A-AGCB3-3504 quantity	50	2500	MHz	-5	-55	0+	-18	-14	-18	-12	50	2500	mhz	5	55-2	0	18-6	14-6	18-8	12-3
A-AGCB3-3504-S5S5	A-AGCB3-3504 quantity	50	2500	MHz	-5	-55	0+	-20	-15	-20	-12	50	2500	mhz	5	55-2	0	20-7	15-8	20-6	12-3
A-AGCB3-3504-F7F7	A-AGCB3-3504 quantity	50	2500	MHz	-5	-55	0+	-14	-8	-14	-8	50	2500	mhz	5	55-2	0	14-7	8-7	14-8	8-6
A-AGCB3-3505-N5N5	A-AGCB3-3505 quantity	50	2500	MHz	-10	-60	0+	-18	-12	-18	-12	50	2500	mhz	10	60	0	18-6	12-5	18-8	12-3
A-AGCB3-3505-F7F7	A-AGCB3-3505 quantity	50	2500	MHz	-10	-60	0+	-14	-8	-18, -20	-8	50	2500	mhz	10	60	0	14-7	8-7	18-8 20-6	8-6
A-AGCB3-3505-S5S5	A-AGCB3-3505 quantity	50	2500	MHz	-10	-60	0+	-20	-12	-20	-12	50	2500	mhz	10	60	0	20-7	12-5	20-6	12-3
A-AGCB3-3506-F7F7	A-AGCB3-3506 quantity	50	2500	MHz	-15	-60	0+	-14	-8	-18, -20	-8	50	2500	mhz	15	60	0	14-7	8-7	18-8 20-6	8-6
A-AGCB3-3506-N5N5	A-AGCB3-3506 quantity	50	2500	MHz	-15	-60	0+	-18	-14	-18	-12	50	2500	mhz	15	60	0	18-6	14-6	18-8	12-3
A-AGCB3-3506-S5S5	A-AGCB3-3506 quantity	50	2500	MHz	-15	-60	0+	-20	-15	-20	-12	50	2500	mhz	15	60	0	20-7	15-8	20-6	12-3
A-AGCB3-3507-B5B5	A-AGCB3-3507 quantity	50	2500	MHz	-20	-60	0+	-16	-12	-18, -20	-10	50	2500	mhz	20	60	0	16-2	12-5	18-8 20-6	10-4
A-AGCB3-3507-F7F7	A-AGCB3-3507 quantity	50	2500	MHz	-20	-60	0+	-14	-8	-18, -20	-8	50	2500	mhz	20	60	0	14-7	8-7	18-8 20-6	8-6
A-AGCB3-3507-S5S5	A-AGCB3-3507 quantity	50	2500	MHz	-20	-60	0+	-20	-15	-20	-12	50	2500	mhz	20	60	0	20-7	15-8	20-6	12-3
A-AGCB3-3507-N5N5	A-AGCB3-3507 quantity	50	2500	MHz	-20	-60	0+	-18	-14	-18	-12	50	2500	mhz	20	60	0	18-6	14-6	18-8	12-3

Did you know we also offer Amplifier modules in our modular Genus habitat?

View related Rack Systems

Versatile amplifier solutions across multiple frequency ranges

Our amplifier options include variable gain amplifiers, AGC (Automatic Gain Control) amplifiers and low noise amplifiers (LNAs). These amplifiers can be externally powered or RF cable inline powered amplifiers.

This extensive selection ensures that we can meet various amplification needs with precision and flexibility.

Options include:

Externally or in-line powered models
Variable gain amplifiers
AGC (Automatic Gain Control) amplifiers
LNA (Low Noise Amplifiers)

Need help selecting the right RF Component for your project?

Only a selection of our products are listed on the site. If you can’t find what you’re looking for or have specific requirements, our team is here to assist you in finding the perfect solution.

Contact the team

FAQ

What frequency ranges do ETL amplifiers cover?

ETL amplifiers are available for a wide range of frequencies including IF, Broad, L, S, C, X, Ku, and wideband.

What types of amplifiers does ETL offer?

ETL provides various amplifier options including externally or in-line powered amplifier models, RF cable powered amplifiers, variable gain amplifiers, AGC (Automatic Gain Control) amplifiers, and low noise amplifiers (LNAs).

How does a variable gain amplifier differ from an AGC amplifier?

A variable gain amplifier allows manual adjustment of gain levels, while an AGC amplifier automatically adjusts gain to maintain a consistent output level despite variations in input signal strength.

Can ETL amplifiers be used for both indoor and outdoor applications?

Yes, ETL amplifiers are designed to be versatile and can be configured for both indoor and outdoor use, depending on the specific model and its housing options.

What is the advantage of using low noise amplifiers (LNAs)?

Low noise amplifiers (LNAs) are designed to amplify weak signals while adding minimal noise, improving signal clarity and overall system performance, especially in low-signal environments.
