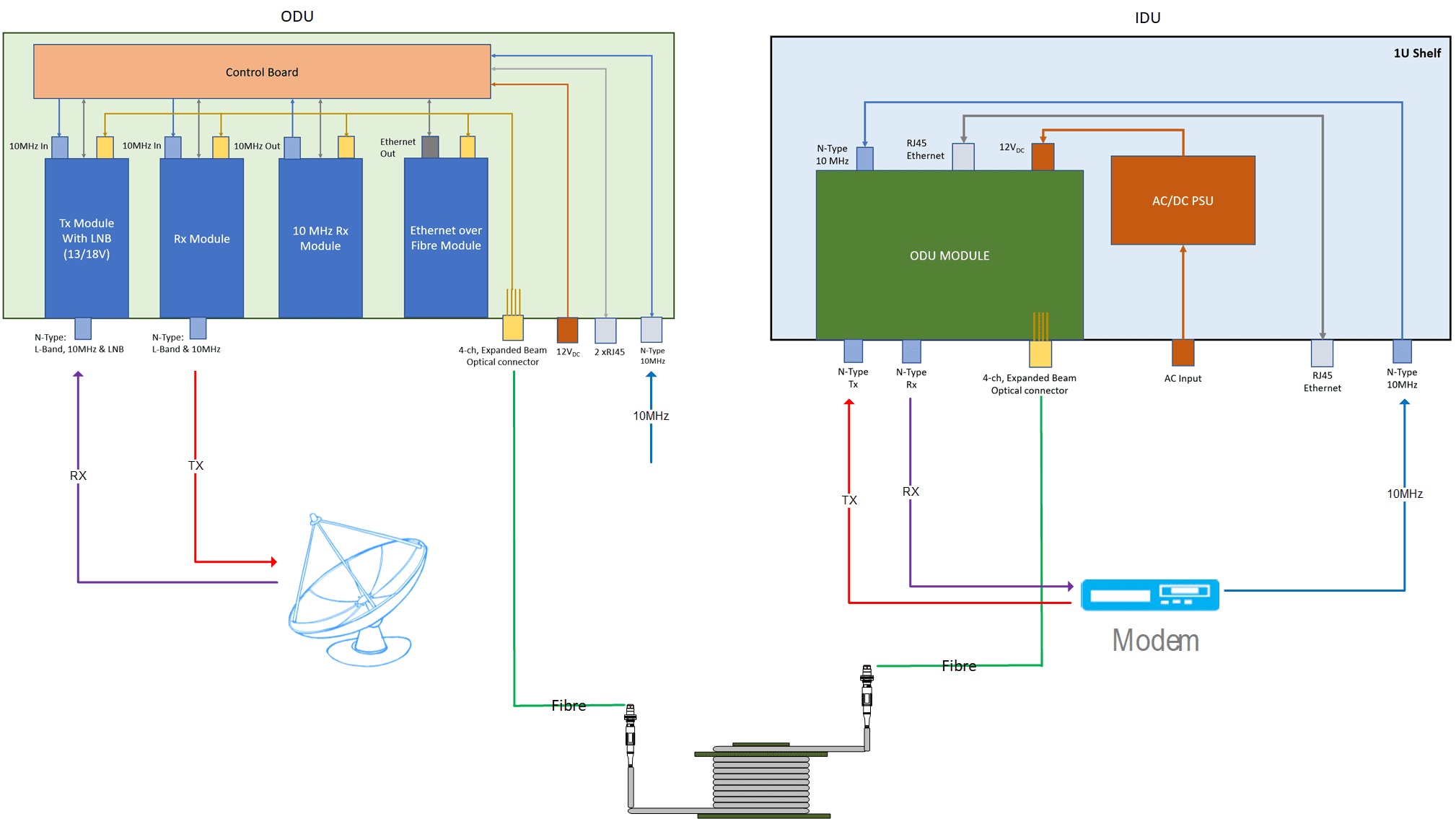

SCHEMATIC
Configurations – RF/Optical Options
Single Rx or Single Tx
Dual Rx or Dual Tx
Quad Rx or Quad Tx
Single Rx and Dual Tx
Dual Rx and Single Tx
Dual Rx and Dual Tx
Configurations – Other Options
Optical Ethernet
2 x RJ45 Ethernet Ports
Optical 10MHz
RF 10MHz Ref
CMDW MUX
LNB powering
Wide range of optical connector choices
4-ch. expanded beam
Neutrik OpticalCON Quad
Single (CWDM)
Applications
